Executive Summary

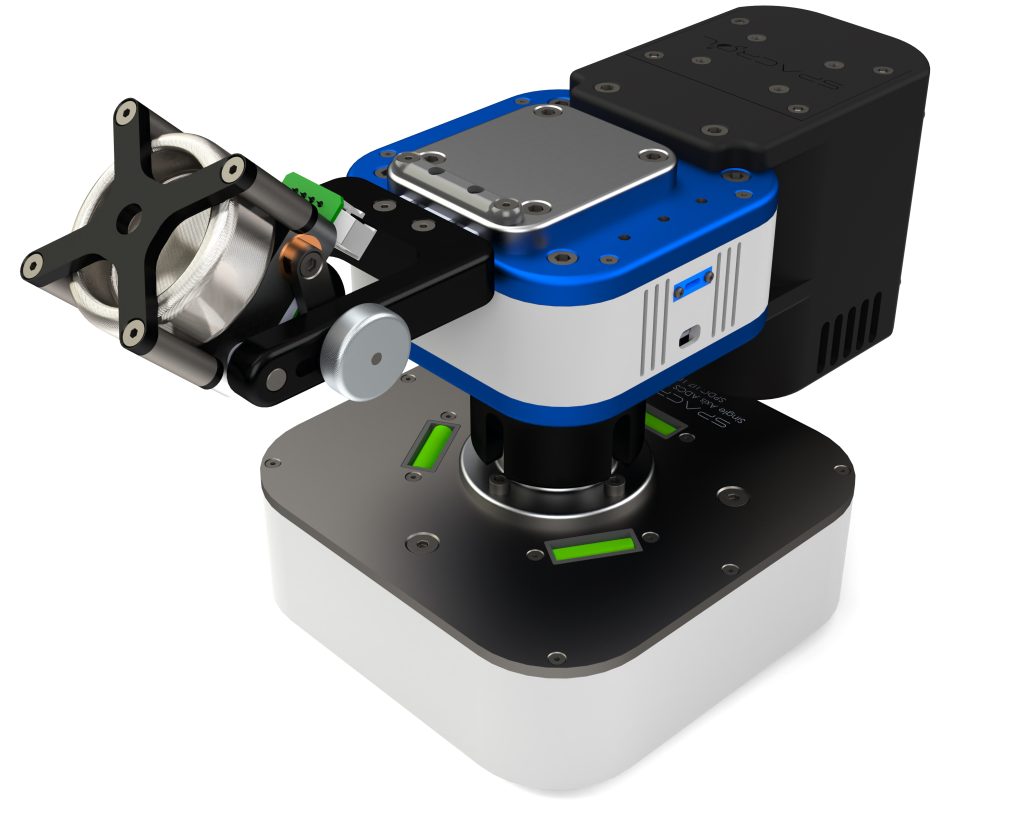

Developed with the “1 System, 4 Tests” vision, 1D4T is a versatile Hardware-in-the-Loop (HIL) platform offering a comprehensive operational range from precise attitude control testing and DC motor drive validation to dynamic analysis and reconfigurable reaction wheel architectures.
Attitude
Control
DC Motor
Control
Parallel Axis
Theorem
Reaction Wheel
Tilt Testing
Operational Versatility

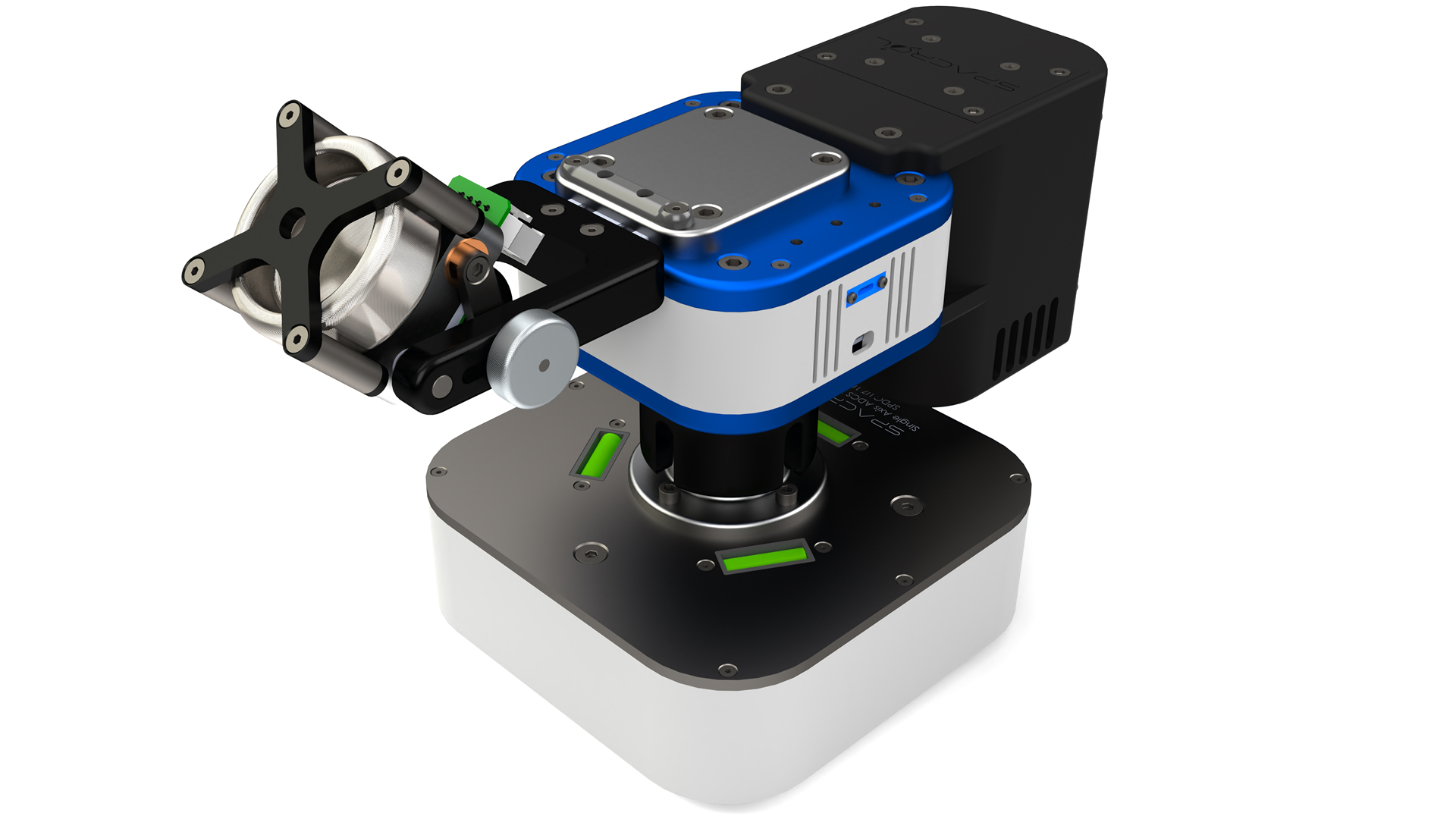

The unique reaction wheel design, which can be seamlessly transformed from an orthogonal structure to a pyramid configuration, allows for the simulation of various ADCS (Attitude Determination and Control System) scenarios on a single platform. This flexibility is critical for validating diverse operational modes without needing multiple physical setups.
Advanced Hardware Architecture
The system is equipped with a high-resolution 16-bit PWM controlled drive layer, an integrated precision IMU sensor, along with USB Type-C and wireless communication infrastructure. This architecture ensures real-time telemetry and uninterrupted control. Furthermore, MATLAB/Simulink compatible HIL/SIL integration and a multi-platform GUI optimize the development and verification of modern control algorithms.
Do you want to get 1D4T product flyer?
Technical Specifications
Engineered for precision and adaptability, the 1D4T platform incorporates state-of-the-art components and interfaces to support comprehensive control law testing and hardware-in-the-loop simulations.
Advanced Drive System |
Custom-designed PCB with high-resolution 16-bit PWM control[cite: 17, 23, 24]. |
Sensor |
Integrated high-precision IMU for accurate attitude determination[cite: 18, 25]. |
Telemetry |
Dual control interface featuring high-speed USB Type-C and wireless communication[cite: 19, 26]. |
HIL/SIL Ready |
Integration with MATLAB/Simulink environments for Hardware-in-the-Loop[cite: 20, 27]. |
Algorithm Support |
Platform architecture readily supports the testing of modern control laws[cite: 21, 28]. |
Multi-Platform GUI |
Real-time data visualization and control interface, accessible via PC, tablet, and smartphone[cite: 22, 29]. |
1 Device, 4 Tests Capabilities
1. ADCS Testing: Precise validation of attitude control algorithms using the integrated IMU and drive system.
2. DC Motor Testing: Advanced analysis and verification of DC motor drive algorithms with high-resolution control.
3. Parallel Axis Theorem: Dynamic analysis and testing capabilities structured around the Parallel Axis Theorem.
4. Reaction Wheel Tilt Testing: Unique reconfigurable architecture allowing transformation from orthogonal to pyramid reaction wheel configurations.
